Intelligent Water Supply Platform Water Environment Management Purified Water/Direct Drinking Water Industrial Water Supply
- Intelligent Water Supply Platform
Intelligent production system
Intelligent dispatching system
Intelligent pipe network system
Intelligent customer service system
System FeaturesQuick and convenient data reading
Intelligent algorithm-assisted decision making
User-based hierarchical display

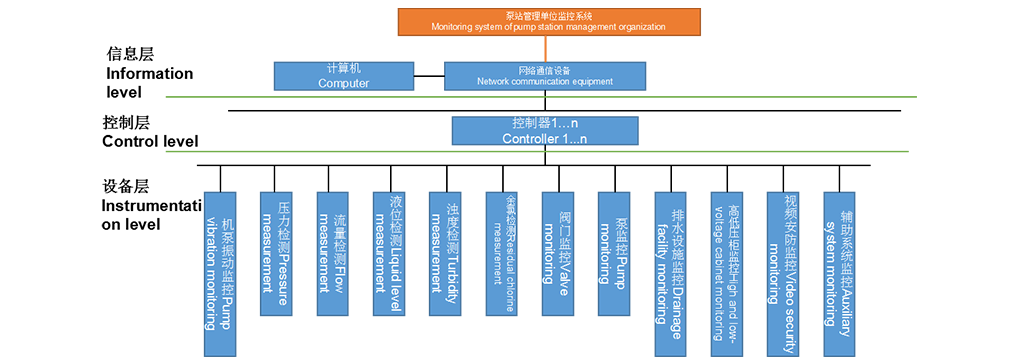

- Intelligent Monitoring System of Pump Station

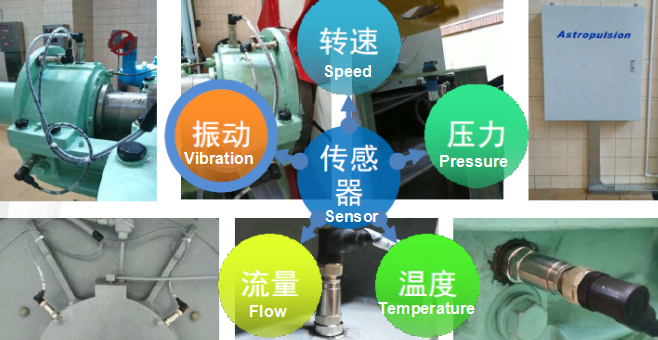

System Features:Pump health diagnosis system
Intelligent electrical equipment monitoring system
- Intelligent Secondary Water Supply Management System
Monitoring of the voltage, current, frequency, operating condition and other parameters of the water pump in the pump house. Monitoring of the pressure and flow of the header within the community.
Wired network: ADSL & optical fiber.
Wireless network: GPRS/CDMA, 3G, 4G
Real-time and online monitoring of the water quality, residual chlorine, PH value, turbidity, temperature, water level and other parameters. Monitoring of field security and equipment inspection by means of real-time video monitoring and remote photographing
Sending of an alarm for any abnormality in water quality and presence of any unauthorized person
Automatic generation of statistical reports and analysis of historical data and curves. Two-way storage of historical data by the field terminal and the central server and remote data synchronization

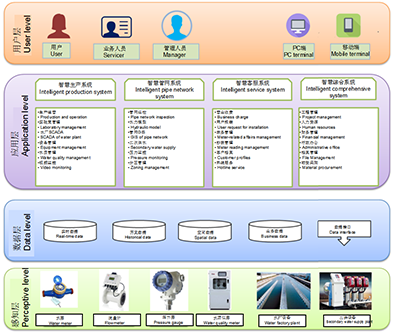

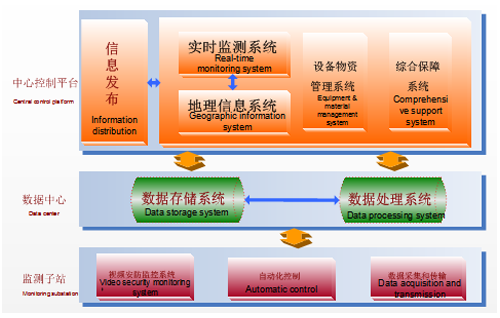

Overall logical system architecture
Overall logical system architectureData reading is fast and easy
Display according to user classification
Intelligent algorithms assist in decision making
- Intelligent Management System of Zone Metering Area of Water Supply Network
Display and query of pipe network facilities
GIS-based dynamic alerting
Statistics of water volume
Assisted analysis of DMA minimum night flow
Assisted positioning of leakage and damage
Management of abnormal water utilization events
Zoning management and maintenance
Water use audit and water balance
Customized menus to improve the flexibility
System FeaturesReduced cost difference between production and sales and increased enterprise income
Customized functions and combination of system modules
Open interface compatible with a variety of devices
Water Environment Management
To restore the self-healing function of the water ecosystem and finally make the water quality up to the Class IV Standard for surface water through ecological management of various natural or artificial water bodies (lakes, wetlands, rivers, etc.).
Technological approach: A combination of “enhanced physical management and ecological restoration”.
Rural Domestic Sewage Treatment
Purified Water/Direct Drinking Water
| Equipment Name | Mobile Direct Drinking Water Equipment | Commercial Direct Drinking Water Dispenser | Pipeline Direct Drinking Water System |
| Picture |  |  |  |
| Application scenarios | For military use - small military bases, temporary military depots, and advance forces; disaster-affected areas, and emergency relief organizations; remote mountain areas and rural areas | Enterprise zone, office building, etc. | Enterprise zone, office building, etc. |
| Water yield | Water yield of 5 m3/h for MI truck, and of 2.5 m3/h for MII truck | Hot water: 50 L/H, 70 L/H, 90 L/H, 120 L/H | To be designed according to customer requirements |
| Raw water quality | Use of MI truck alone: Surface water (Class III and above) Joint use of MI truck + MII truck: surface water, groundwater, sea water | Municipal tap water in general | Municipal tap water in general |
| Produced water quality | Meet the Standards for Drinking Water Quality (GB5749-2006) and Guidelines for Drinking Water Quality of WHO | Meet the Water Quality Standards for Fine Drinking Water (CJ94-2005) | |
Sea Water Desalting Equipment
| Equipment name | Portable Sea Water Desalting Equipment | Marine Sea Water Desalting Equipment | Sea Water Desalting Equipment for Islands |
| Picture |  |  |  |
| Application scenarios | Emergencies where the one-man operated portable equipment is required | Drilling platforms, work barges, platform supply vessels, fishing boats, yachts, etc. | Islands and coastal cities without drinking water delivered by the mainland pipelines and vessels |
| Produced water quality | To meet the Standards for Drinking Water Quality (GB5749-2006) and Guidelines for Drinking Water Quality of WHO | ||
| Water yield | 30L/h | 2~50m3/d | 20~200m3/d |
| Features | Independently researched and developed energy recovery device; Trolley case structure; Power supplied by solar energy. | Design and manufacturing based on the marine and marine engineering standards; Modular design, with the pre/after-treatment process to be selected according to actual conditions; Easy operation and maintenance. | Skid or container-based design for easy transportation and installation; All parts made of seawater resistant materials; PLC+control panel. |
